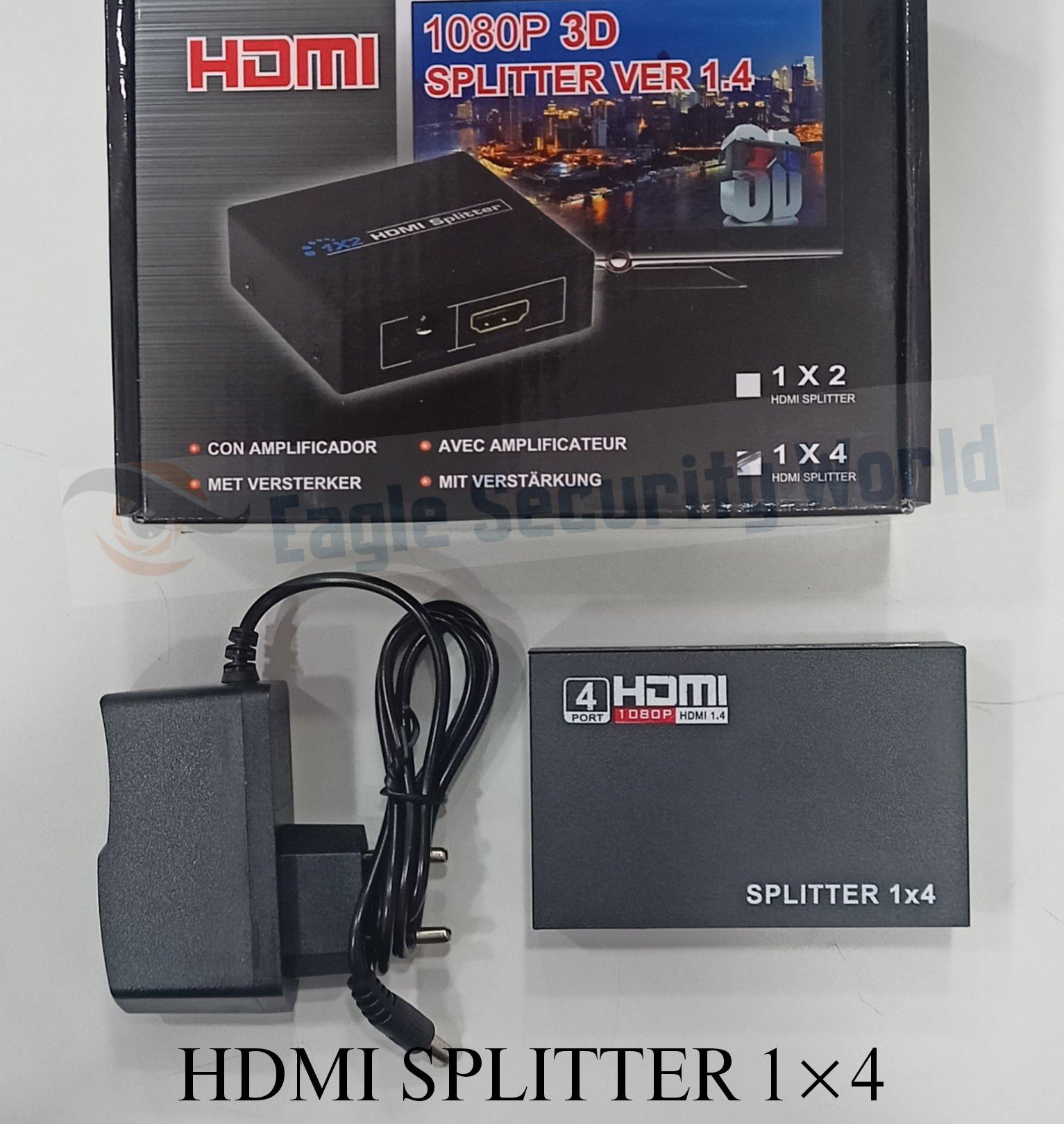

Application Diagram:Product : 4 Port Hdmi SplitterHdmi Source Input Port : 1Display Device Output Port : 4 Source Port Connector : 19 Pin HdmiDisplay Device Port Connector : 19 Pin HdmiHdcp Compliant : YesDevice Port Led : 4Single Link Range : 1920??1200Video Bandwidth : Upto 4.95GhzVertical Frequency Range : 60HzPower Consumption ( Max ) : 5 WattsHdmi Version : 1.4Features :1 input and 4 output (splitter)Approved by hdmi attached labFully support 1080p HDTVHdcp compliantSupport DTS, Dobby,7.1 channel audioGold plated connectorCable fixing bolt for long cablePlug and PlayAmplifier and Equalizer function for extending the HDMI cable .Rack mounting kit and wall mounting kit version.
