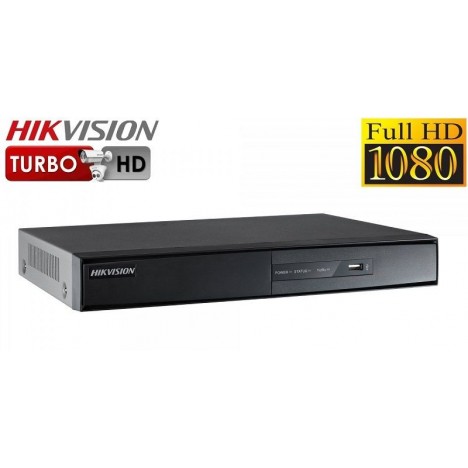

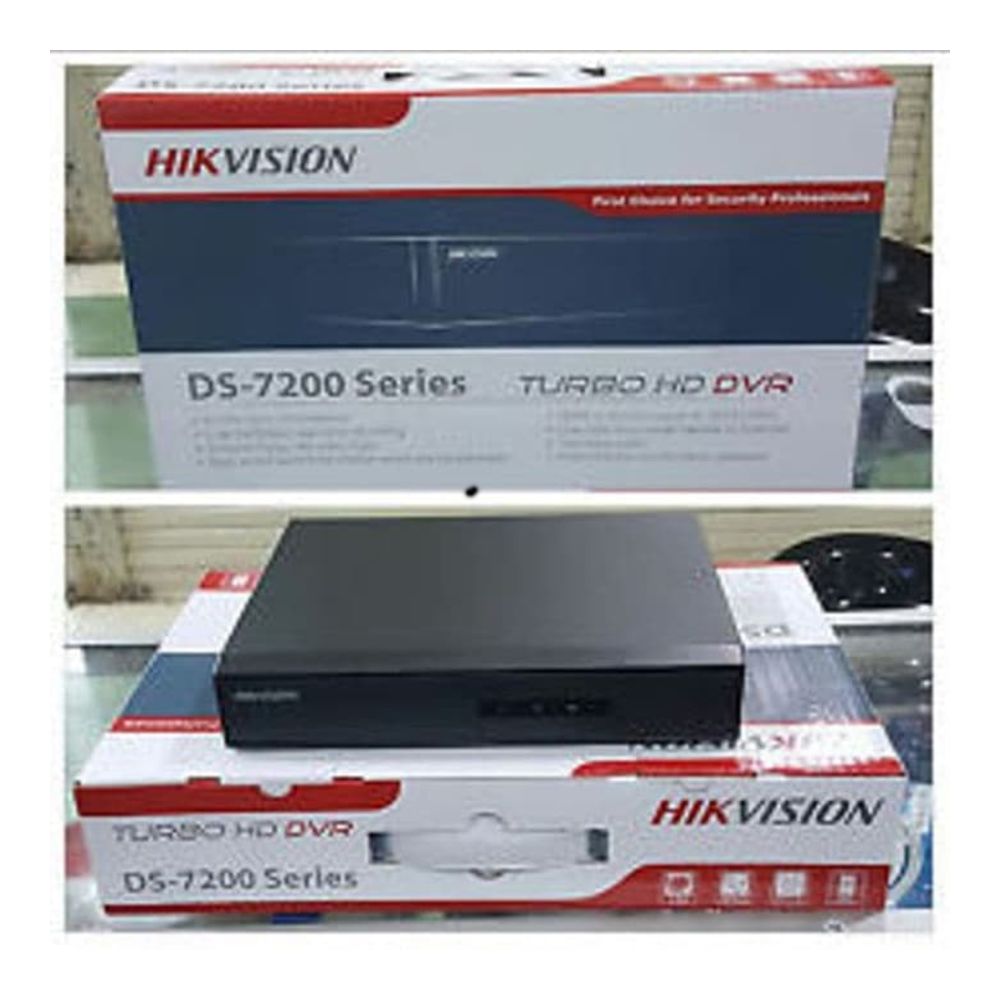

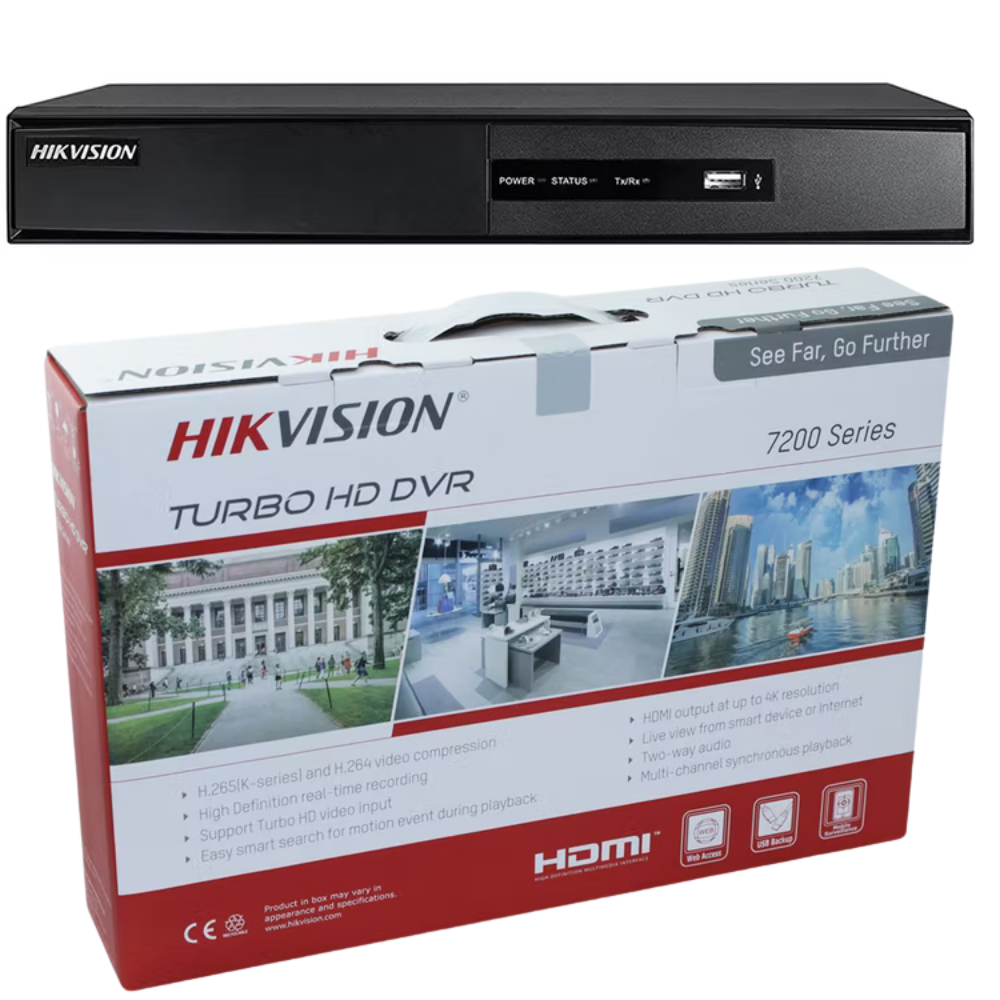

HIKVISION DS 7200 SERIES 4CH 2MP DVR

(0)

262 TND
Couleurs disponibles :
Reference S19168-6P7315
Categorie Camera de survaillance
Etat NEUF

t

Classification des cibles humaines et véhicules basée sur l'apprentissage profond de Motion Détection 2.0

Compression vidéo H.265 Pro+/H.265 Pro/H.265

Entrée vidéo HDTVI/AHD/CVI/CVBS/IP

Audio par câble coaxial

Entrées de caméra IP jusqu'à 5 canaux (jusqu'à 2 MP)

Capacité d'encodage jusqu'à 1080p Lite@15 ips

Max. 1200 m pour le signal HDTVI 720p

  • Motion Detection 2.0
  • Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;
  • Recording
  • Video Compression
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF
  • For SD stream access: WD1/4CIF/VGA/CIF
  • Frame Rate
  • Main stream:
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
  • For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • Sub-stream:
  • 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate
  • 32 Kbps to 4 Mbps
  • Stream Type
  • Video, Video & Audio
  • Audio Compression
  • G.711u
  • Audio Bitrate
  • 64 Kbps
  • Video And Audio
  • IP Video Input
  • 1-ch (up to 5-ch)
  • Up to 1080p resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input
  • 4-ch
  • BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI Output
  • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output
  • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • CVBS Input
  • Support
  • HDTVI Input
  • 1080p25, 1080p30, 720p25, 720p30
  • Synchronous Playback
  • 4-ch
  • AHD Input
  • 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input
  • 1080p25, 1080p30, 720p25, 720p30
  • Video Output Mode
  • HDMI/VGA simultaneous output
  • Audio Output
  • 1-ch, RCA (Linear, 1 KΩ)
  • Audio Input
  • 1-ch RCA (2.0 Vp-p, 1 KΩ)
  • 4-ch via coaxial cable
  • Two-Way Audio
  • Reuse the first audio input
  • Network
  • Total Bandwidth
  • 64 Mbps
  • Network Protocol
  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Remote Connection
  • 32
  • Network Interface
  • 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA
  • 1 SATA interface
  • Capacity
  • Up to 4 TB capacity for each disk
  • USB Interface
  • Rear panel: 2 × USB 2.0
  • Alarm In/Out
  • N/A
  • General
  • Power Supply
  • 12 VDC, 1.5 A
  • Consumption
  • ≤ 16 W (without HDD)
  • Working Temperature
  • -10 °C to 55 °C (14 °F to +31 °F)
  • Working Humidity
  • 10% to 90%
  • Dimension (W × D × H)
  • 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • ≤ 0.8 kg (without HDD, 1.8 lb.)
